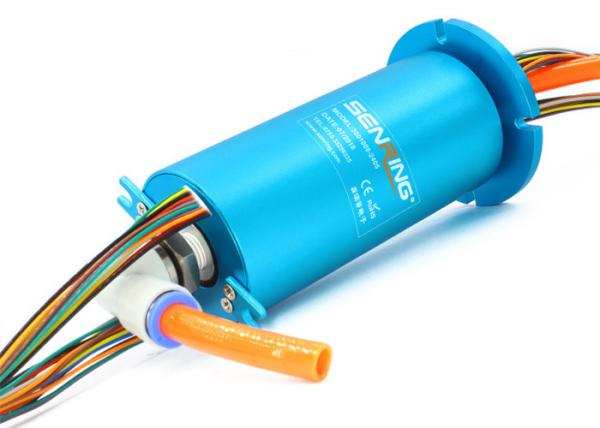

Pneumatic Rotary Union With Flange Mounting Can Be Customized With Hollow Shaft Mounting
Description of 3001008 Pneumatic Rotary Union
The Senring 3001 pneumatic rotary joint is a single passage rotary joint that can rotate 360 degrees to transmit various gas media such as compressed air, steam, and vacuum. It supports multiple gas pipes of 4mm, 6mm, 8mm, 10mm, and 12mm. The 3001 series pneumatic rotary joint also includes an electrical rotary joint series, which can not only transmit gas, but also mix and transmit various currents ranging from 2A to 800A. The 3001008 series rotary pipe joint has the advantages of small size, light weight, and low torque.
Features of 3001008 Pneumatic Rotary Union
1. This is a single passage rotary joint with 1 inlet and 1 outlet for gas and electricity transmission.
2. It has a G1/4" fitting and supports pipe diameters of 6-10mm.
3. It can mix power lines, signal lines, industrial buses, control lines, and sensing lines.
4. It is installed via a standard flange and can also be customized with a hollow shaft.
5. It can transmit various media, including compressed air, nitrogen, chemical mixtures, steam, cooling water, hot water, and hot oil.
Technical Specification of 3001008 Pneumatic Rotary Union
| Passages(Gas) | 1 passage |
| Pipe Size | 8mm pipe, G1/4" Port |
| Mechanical Data |
| spec. | data |
| Working life | 20millions for ref(depends on working conditions) |
| Max. Operating Speed | 250RPM continously, 1000RPM intermittently |
| Working temp. | -30°C~80°C |
| Work humidity | 0~85% RH |
| Contact Materia | Precious Metal |
| Housing Material | aluminum alloy |
| IP Grade | IP51 |
Max. Operating
Pressure | Positive Pressure 10Mpa, Vacuum -90kPa |
| torque | 0.2N.m |
| Electrical Data |
| spec. | data |
| Power | Signal |
| Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insolution resistance | <500MΩ/300VDC | <500MΩ/300VDC |
| Lead wire spec. | AWG17# Silver-plated teflon wire | AWG22# Silver-plated teflon wire |
| Lead wire length | standard 200mm(can be customized) |
| Insolution resistance | 500VAC@50Hz,6s |
| Electrical noise | <0.01Ω |

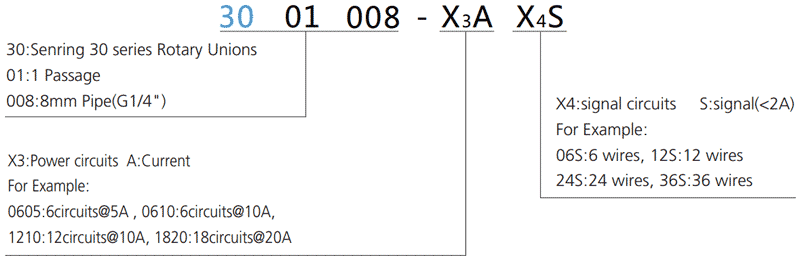

Part no. description

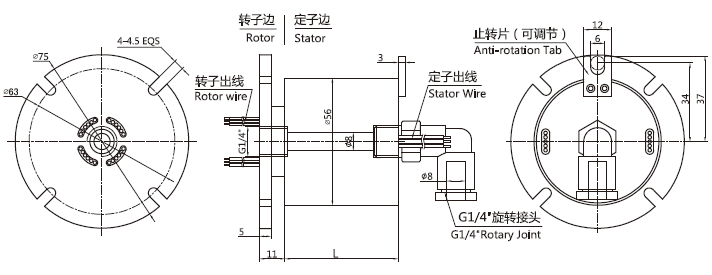

Drawing
Standard model list
| 3001008-02S | 1 passage | 0 | 2 | 34 |
| 3001008-0210 | 1 passage | 2 | 0 | 34 |
| 3001008-03S | 1 passage | 0 | 3 | 34 |
| 3001008-0310 | 1 passage | 3 | 0 | 34 |
| 3001008-06 | 1 passage | 0 | 6 | 34 |
| 3001008-0210-04S | 1 passage | 2 | 4 | 34 |
| 3001008-0410-02S | 1 passage | 4 | 2 | 34 |
| 3001008-0610 | 1 passage | 6 | 0 | 34 |
| 3001008-12S | 1 passage | 0 | 12 | 52 |
| 3001008-0210-10S | 1 passage | 2 | 10 | 52 |
| 3001008-0310-09S | 1 passage | 3 | 9 | 52 |
| 3001008-0410-08S | 1 passage | 4 | 8 | 52 |
| 3001008-0610-06S | 1 passage | 6 | 6 | 52 |
| 3001008-0810-04S | 1 passage | 8 | 4 | 52 |
| 3001008-1010-02S | 1 passage | 10 | 2 | 52 |
| 3001008-1210 | 1 passage | 12 | 0 | 52 |

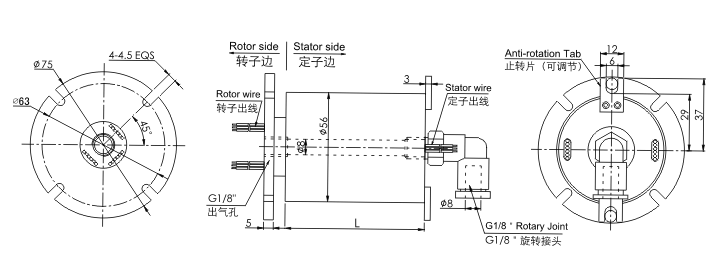

Drawing
Standard model list
| 3001008-1210-06S | 1 passage | 12 | 6 | 71.5 |
| 3001008-1410-04S | 1 passage | 14 | 4 | 71.5 |
| 3001008-1610-02S | 1 passage | 16 | 2 | 71.5 |
| 3001008-18S | 1 passage | 0 | 18 | 71.5 |
| 3001008-0210-16S | 1 passage | 2 | 16 | 71.5 |
| 3001008-0410-14S | 1 passage | 4 | 14 | 71.5 |
| 3001008-0610-12S | 1 passage | 6 | 12 | 71.5 |
| 3001008-0810-10S | 1 passage | 8 | 10 | 71.5 |
| 3001008-1010-08S | 1 passage | 10 | 8 | 71.5 |
| 3001008-24S | 1 passage | 0 | 24 | 88.5 |
| 3001008-0410-20S | 1 passage | 4 | 20 | 88.5 |
| 3001008-0610-18S | 1 passage | 6 | 18 | 88.5 |
| 3001008-1210-12S | 1 passage | 12 | 12 | 88.5 |
| 3001008-1810-06S | 1 passage | 18 | 6 | 88.5 |
| 3001008-2410 | 1 passage | 24 | 0 | 88.5 |
| 3001008-30S | 1 passage | 0 | 30 | 105 |
| 3001008-0210-28S | 1 passage | 2 | 28 | 105 |
| 3001008-0410-26S | 1 passage | 4 | 26 | 105 |
| 3001008-0610-24S | 1 passage | 6 | 24 | 105 |
| 3001008-1210-18S | 1 passage | 12 | 18 | 105 |
| 3001008-36S | 1 passage | 0 | 36 | 122 |
| 3001008-0410-32S | 1 passage | 4 | 32 | 122 |
| 3001008-0610-30S | 1 passage | 6 | 30 | 122 |
| 3001008-42S | 1 passage | 0 | 42 | 139 |
| 3001008-0410-38S | 1 passage | 4 | 38 | 139 |
| 3001008-48S | 1 passage | 0 | 48 | 156 |
| 3001008-56S | 1 passage | 0 | 56 | 178 |
| 3001008-72S | 1 passage | 0 | 72 | 223 |
Pneumatic/Hydraulic rotary union is designed for rotary apparatus and it can provide safe and stable hybrid transmission for multi passage air pressure and fluid media. With modular design, it is more stable and reliable. With the through bore design,it can pass wires or pass other devices.
