USB Rotary Connector 1 Channel USB2.0 wire +1~56 circuits power / signal
Description of UH3899-01 USB Slip Ring
Senring UH3899-01 series single-channel USB slip ring is a single-channel USB rotary connector that can rotate 360 degrees to transmit 1 channel of USB 2.0 signal. It can mix transmission of 2-38 channels of power/current/signal and can stably transmit IEEE1394 and various USB signals. The UH3899-01 series 1-channel USB slip ring has the advantages of stable signal transmission, no packet loss, no code error, low return loss, and low insertion loss. The slip ring has a bore diameter of 38.1mm and an outer diameter of 99mm, and can be used for 360-degree rotation devices with a rotation axis diameter less than 38.1mm. The UH3899-01 series USB slip ring is a standard model of Senring, with stock and strong versatility, and can be customized for special specifications.
Applications:
1. Automation equipment
2. Motion simulator
3. CCTV/VR
Features of UH3899-01 USB Slip Ring
1. Standard USB male/female plug connector, customizable connector available;
2. Stable transmission of 1 channel of USB 2.0 signal;
3. Can mix transmission of 2-38 channels of power/current/signal;
4. Slip ring bore diameter: 38.1mm, outer diameter: 99mm;
5. Can mix conductive transmission of various signals such as IEEE 1394, Ethernet, USB2.0; Can work together with current channel or fluid rotary joints.
Technical Specification of UH3899-01 USB Slip Ring
| USB cable | 1 channels USB2.0 |
| BER(bit-error rate) | 10E-11 |
| Mechanical Data |
| spec | data |
| working life | SenRing Slip Rings Grade Table |
| Rotating speed | 150RPM |
| working temp. | -30℃∼80℃ |
| work humidity | 0∼85% RH |
| contact material | refer to slip ring grade table |
| housing material | aluminum alloy |
| torque | 0.1N.m+(0.03N.m/6 circuits) |
| connector | USB 2.0 male ( female optional) |
| insertion loss | ≤2db |
| Electrical Data |
| spec | data |
| power | signal |
| voltage range | 0∼440VAC/VDC | 0∼440VAC/VDC |
| insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| lead wire spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard 300mm(can be customized) |
| Dielectric Strength | 500VAC@50Hz,60s |
| Electrical noise | < 0.01Ω |
| CE certificate | Yes |
| material | RoHS certificate |

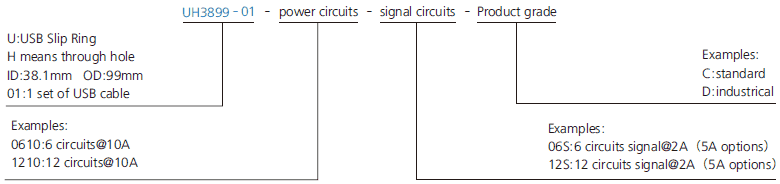

Part no. description

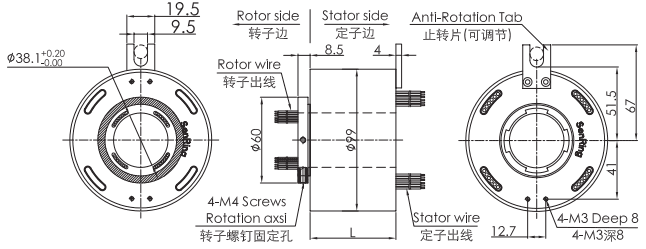

Drawing of UH3899-01 USB Slip Ring
Standard model list
| UH3899-01-02S | 2 | 0 | 0 | 1 | 48 |
| UH3899-01-0210 | 0 | 2 | 0 | 1 | 48 |
| UH3899-01-0420 | 0 | 0 | 0 | 1 | 72 |
| UH3899-01-08S | 8 | 0 | 0 | 1 | 72 |
| UH3899-01-0810 | 0 | 8 | 0 | 1 | 72 |
| UH3899-01-0210-06S | 6 | 2 | 0 | 1 | 72 |
| UH3899-01-0410-04S | 4 | 4 | 0 | 1 | 72 |
| UH3899-01-14S | 14 | 0 | 0 | 1 | 96 |
| UH3899-01-1410 | 0 | 14 | 0 | 1 | 96 |
| UH3899-01-0410-10S | 10 | 4 | 0 | 1 | 96 |
| UH3899-01-0810-06S | 6 | 8 | 0 | 1 | 96 |
| UH3899-01-20S | 20 | 0 | 0 | 1 | 120 |
| UH3899-01-2010 | 0 | 20 | 0 | 1 | 120 |
| UH3899-01-26S | 26 | 0 | 0 | 1 | 144 |
| UH3899-01-38S | 38 | 0 | 0 | 1 | 192 |
*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.
UH3899-01 USB Slip Ring Grade Table
| C: standard | 400RPM | 20 millions | precious metal |
| D: industrical | 800RPM | 60 millions | gold-gold |
