Mercury Slip Ring Transmitting 1 Channel 250A Current When 360° Rotating

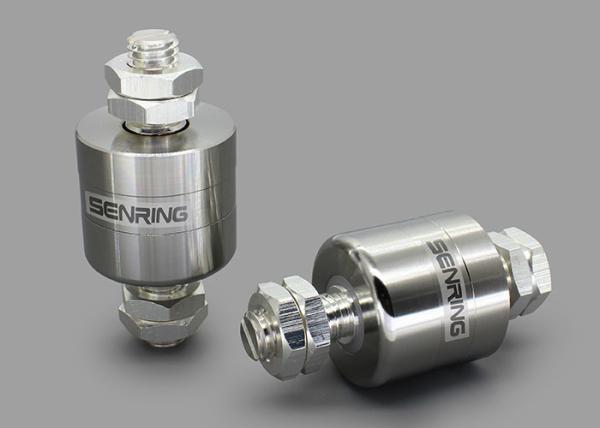

Description of 203101250 Mercury Slip Ring
The 203101250 series single-channel 250A high-current collector ring is a specialized 250A high-current conductive slip ring developed by SenRing for electroplating equipment. It has a single channel and is installed with a threaded terminal. It supports a maximum of 250A high current in a single channel. In addition to the current 250A specification, various specifications are available, including 50A, 100A, 250A, 500A, 1500A, and 3000A.
Features of 203101250 Mercury Slip Ring
1. High current, single channel 250A current;
2. Widely used in various electroplating equipments;
3. Adopting stainless steel housing;
4. Has the advantages of small contact resistance, low heat and long - term stable operation;
5. Integrated structure design,easy installation.

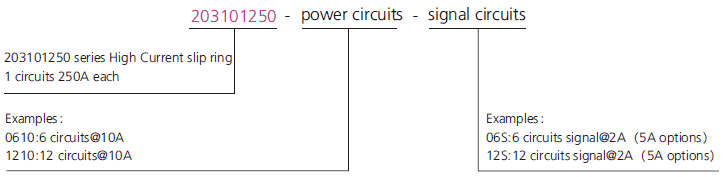

Part no. description
Drawing of 203101250 Mercury Slip Ring
Standard model list
| Model | Circuits | Max current | Max speed | working temp. |
| 203101250 | 1 circuit | 250A | 1200RPM | -29℃~+60℃ |
SenRing Electroplating/Electrolysis Equipment Dedicated High current slip ring, include 50A,100A,250A,500A,1500A,3000A and other specifications, different current specifications are applicable to a variety of different sizes and power plating equipment, with easy installation, light weight and large load flow.Suitable for plating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
